The Physics of Coating Failure at Tight Bend Radii

When aluminum substrate deforms plastically at a bend, the outer face stretches and the inner face compresses. The coating must accommodate both strain states simultaneously, across the full length of the fold, in a fraction of a second. That is a mechanical demand, not a finishing consideration.

Crazing, micro-cracking and delamination occur when the coating’s elongation-at-break value is lower than the strain the bend geometry actually imposes. The coating does not fail because of poor adhesion or a bad batch; it fails because the film cannot stretch as far as the metal beneath it.

Tighter radii make this worse in a measurable way. Bend geometry is expressed as a ratio of bend radius to material thickness, written as R/t. A 1T bend on 4mm aluminum composite material generates significantly more surface elongation than a 3T bend on the same stock. As R/t decreases, the surface strain increases and the margin between what the coating can tolerate and what the geometry demands narrows quickly.

AAMA 2605, the specification that governs high-performance organic coatings on architectural aluminum, includes a minimum elongation performance threshold in its qualification testing. That inclusion is significant: it establishes elongation as a codified performance variable, not a secondary concern that can be evaluated informally after the stock has been ordered.

Where Standard PVDF Chemistry Reaches Its Limit in the Shop

Standard PVDF coatings are engineered primarily for weathering resistance, chalk resistance and color retention over decades of UV exposure. Those are the right priorities for a facade finish that will face the sun for thirty years. Elongation is a secondary design parameter in that chemistry, and the formulation reflects that hierarchy.

The fluoropolymer matrix in a conventional PVDF system is relatively rigid at room temperature, which is the condition under which most shop fabrication occurs. Cold shop environments, common in northern climates through a significant portion of the fabrication season, tighten that rigidity further. The coating that passed its mandrel bend test in a conditioned laboratory may behave differently on a 45-degree morning in January.

Fabricators working with standard coated stock often compensate by pre-heating the bend zone with a heat gun before forming. That approach can reduce craze risk, but it also slows throughput, introduces inconsistency depending on who is running the gun and how long they hold it, and adds a process variable that is difficult to document or repeat reliably across a large panel run.

AAMA 2605 Section 7.9 specifies a minimum elongation of 50 percent for coil-coated aluminum. Conventional PVDF systems typically perform near that floor rather than well above it. When the geometry of a project pushes fabrication toward tight returns and small-radius reveals, that narrow margin disappears quickly.

Elongation by Design: What a Flexible Resin Formulation Does Differently

A flexible resin system is formulated with a polymer backbone that carries a higher elongation-at-break value, typically exceeding 100 percent. That means the film stretches with the substrate rather than fracturing against it. The difference is not incremental; it represents a different design intent in the coating chemistry from the ground up.

Crosslink density in a flexible resin is tuned to allow molecular chain movement under strain while still recovering cohesion after deformation. The film does not stretch and stay deformed; it accommodates the bend and maintains integrity at the fold. That recovery preserves the appearance and the protective function of the coating at the finished edge.

Adhesion to the substrate is maintained through the bend because the film and the aluminum move as a system rather than as two independent materials with mismatched mechanical properties. When the elongation values are matched, the interface between coating and substrate is not the point of failure. The coating goes where the metal goes.

Fairview’s Vitranar finish is formulated as a flexible resin coating to address fabrication geometry demands, including tight returns, reveals and column wraps where conventional coatings show crazing. It is not a modified PVDF system; it is a distinct chemistry designed around the elongation requirement that complex facade geometry creates.

How to Evaluate Coating Elongation Data Before It Becomes a Shop Problem

The time to evaluate coating elongation is during shop drawing review, not after the first panel comes off the brake with a crazed fold line. The technical data sheet for any coated stock should include an elongation-at-break value. Request it before committing to a run and compare it against the strain your tightest bend geometry will impose.

Surface strain at a bend can be estimated using a straightforward formula: strain (%) = t / (2R + t) x 100, where t is material thickness and R is inside bend radius. The result gives you a minimum elongation requirement that the coating must exceed. If the data sheet value and the calculated strain requirement are close, you do not have a margin; you have a risk.

Substrate thickness and alloy temper also affect how much strain the coating sees. Harder tempers distribute less deformation plastically through the material, concentrating strain at the surface layer where the coating sits. A coating that performs adequately on a softer temper may show crazing on the same geometry in a harder alloy.

AAMA 2605 qualification testing includes mandrel bend tests that simulate fabrication deformation. Specifying coatings that exceed the minimum mandrel bend pass criteria, rather than meeting them, provides a documented margin of safety that fabrication leads can reference when setting process parameters and evaluating stock before production begins.

Temperature, Speed and Tooling: The Variables That Turn Marginal Coatings Into Rejects

Even a coating with adequate elongation data can fail in the shop if process conditions push it past its practical limit. Three variables deserve direct attention before a production run starts.

Ambient temperature below 60 degrees Fahrenheit reduces polymer chain mobility in any coating system. The elongation-at-break value on the data sheet reflects performance at standard test conditions, typically around 73 degrees Fahrenheit. In a cold shop, the practical elongation available at the moment of forming is lower than that figure, and a coating that clears the calculated strain requirement at room temperature may not clear it in January.

Brake speed affects the strain rate imposed on the coating. Faster bending applies strain more rapidly, which reduces the time available for polymer chain movement and increases craze risk in less flexible systems. Slowing the stroke on tight-radius work is a straightforward adjustment that reduces risk without changing tooling or material.

Die radius on the brake tooling is a direct multiplier on surface strain. Worn or undersized tooling that produces a sharper effective radius than specified will push even a compliant coating past its limit. Checking tooling condition before a run on tight-radius panels is a basic step that is easy to skip under schedule pressure and expensive to skip in practice.

Fairview’s technical support documentation provides minimum bend radius guidelines by product and thickness, giving fabrication leads a concrete reference point for setting tooling and process parameters before production begins rather than discovering the limits through rejected panels.

Rejection Rate, Touch-Up Labor and Field Rework: The Real Cost of the Wrong Coating

A crazed fold line on a panel that has already been cut, bent and drilled represents sunk labor. Every operation performed on that panel before the coating failed has been paid for. The coating failure converts that labor into waste rather than billable output, and the cost lands on the fabrication run, not on the coating supplier.

Touch-up coatings applied in the field to crazed fold lines do not replicate the factory finish in gloss, color consistency or long-term weathering performance. The visible difference between a factory-applied finish and a field touch-up is apparent on installation and becomes more apparent over time as the two coatings weather at different rates. That is a quality defect on the installed facade that reflects on the fabricator and the contractor regardless of where the specification failure originated.

Field rework on installed panels carries costs well above original shop fabrication, given typical field labor rates and access requirements. The arithmetic on that multiplier makes the case for getting the coating specification right before the brake press runs.

Specifying a coating system with documented elongation performance matched to the project’s bend geometry is a direct lever on shop throughput and rejection rate. Both of those variables respond to coating selection made at the right point in the procurement sequence.

Getting the Right Coating Into the Job Before the Brake Press Runs

Identify the tightest bend radius in the project’s panel geometry during the shop drawing review phase. Use that dimension to set the minimum elongation requirement for coating selection. That single step moves the coating decision from a procurement default into an engineering input.

Confirm that the coated stock supplier can provide a technical data sheet with elongation-at-break values and mandrel bend test results referenced to AAMA 2605 or an equivalent test protocol. If the data sheet does not include those values, the supplier cannot demonstrate that the coating meets the fabrication requirement and the risk of that gap transfers to your shop.

For projects with column wraps, reveals or returns tighter than 2T, specify flexible resin coatings by chemistry type in the fabrication specification rather than defaulting to standard coil-coated stock. That language in the specification protects the fabrication lead from receiving material that meets a general finish standard but fails the specific geometry of the project.

Coordinate with the coating supplier early in the procurement sequence. Flexible resin coated stock may carry a different lead time than standard coil-coated inventory. Confirming availability before the fabrication schedule is locked prevents a situation where the right coating is identified too late to source without compressing the production timeline.

Confidence at the Brake Press Starts with the Right Coating Chemistry

The decision about coating chemistry is made long before the first panel goes on the brake, but its consequences show up in the reject pile, the touch-up queue and the field rework log. Matching a coating’s elongation properties to the deformation your fabrication geometry actually imposes is not a specification refinement; it is a basic condition for consistent shop output.

Fairview’s Vitranar flexible resin finish is engineered for exactly this condition. Technical data sheets, bend radius guidelines and product support are available to help fabrication leads and shop managers evaluate whether a flexible resin system fits their current project geometry and throughput requirements.

If you are working through a complex facade package and want to review coating options against your specific bend geometry, contact Fairview’s technical team or download the Vitranar product data sheet to begin the evaluation.

The post Why Flexible Resin Coatings Hold at Tight Bend Radii first appeared on Fairview Architectural North America.

AAMA Coating Standards Define Performance Minimums, Not Material Identity

AAMA 2604 and 2605 are voluntary performance specifications published by the American Architectural Manufacturers Association. They govern the weathering durability of liquid-applied coatings on aluminum substrates, not the panel system itself. That distinction matters because a panel product and its coating are evaluated separately; a high-quality aluminum composite panel can carry a coating that meets either standard, and the panel specification alone does not determine which applies.

Both standards set minimum thresholds for chalk resistance, fade resistance, gloss retention and film adhesion after accelerated and natural weathering exposure. Compliance is verified through third-party testing, and a coating manufacturer’s technical data sheet must cite the specific standard to which the product has been tested and certified. A data sheet that lists physical properties without naming the governing standard is not sufficient documentation for a performance specification.

One common point of confusion involves resin nomenclature. Kynar 500 is the registered trade name for the PVDF resin most commonly associated with AAMA 2605-compliant coatings. Specifying the resin by name without citing the performance standard leaves the requirement open to substitution; a coating may contain PVDF at a concentration that does not meet 2605 thresholds. The standard, not the resin name, is the enforceable benchmark.

Accelerated Weathering Hours Separate the Two Standards at a Fundamental Level

The most consequential structural difference between the two standards is the weathering exposure protocol each requires. AAMA 2604 requires a minimum of 4,000 hours of accelerated weathering using a fluorescent UV condensation apparatus per ASTM G154. This method is a recognized and repeatable laboratory simulation, but it does not replicate the full spectral output of natural solar radiation.

AAMA 2605 requires a minimum of 4,000 hours of Xenon-arc exposure per ASTM G155, a more spectrally accurate simulation of sunlight, combined with a mandatory 10-year Florida south-45-degree natural weathering exposure. The Florida exposure requirement is not a formality. It subjects coated panels to the highest UV intensity and humidity conditions in the continental United States for a full decade before the standard is satisfied. No accelerated test fully replicates that combination of UV flux, heat and moisture cycling over time.

Specifiers who want to close substitution gaps during value engineering can cite ASTM G155 directly in the performance specification section. Requiring that the coating manufacturer’s certified test report reference ASTM G155 as the accelerated weathering method, alongside documentation of the Florida natural exposure, gives the submittal reviewer a verifiable basis for approval or rejection that goes beyond a product name.

The Quantitative Limits Tell the Story a Specification Narrative Cannot

The performance gap between the two standards becomes concrete when you compare the published numerical limits side by side.

Chalk resistance after weathering: AAMA 2604 permits a maximum chalk rating of 8 per ASTM D4214, meaning visible chalking is acceptable within that range. AAMA 2605 requires a minimum chalk rating of 8, meaning no more than trace chalking is acceptable after the full exposure period. The rating scale runs in the same direction, but the threshold represents a meaningfully different outcome on a facade surface.

Color retention after weathering: AAMA 2604 allows a maximum color change of 5 Delta E units (CIE) after accelerated exposure. AAMA 2605 limits color change to 5 Delta E units for standard colors, but the critical difference is that this result must be achieved after the full Florida natural exposure period, not only after laboratory testing. For certain color families, AAMA 2605 imposes tighter limits still.

Gloss retention is where the gap is most visible in practice. AAMA 2604 requires 30 percent minimum gloss retention after weathering. AAMA 2605 requires 50 percent minimum gloss retention. On a long-lifecycle institutional facade, that 20-point difference translates to a visible change in surface reflectivity apparent in oblique lighting conditions, particularly at low sun angles in the morning and late afternoon. Addressing that kind of finish degradation without full panel replacement is not a realistic option.

Coastal, High-UV and High-Humidity Exposures Make the Standard Choice Non-Negotiable

Project environment is the second major variable in the standard selection decision. Facades in ASHRAE climate zones 1 through 3, coastal zones within one mile of saltwater and high-altitude sites above 5,000 feet experience UV flux and moisture cycling that accelerate coating degradation beyond what AAMA 2604 testing simulates. In these conditions, the performance gap between the two standards is not theoretical; it becomes visible on the building.

South and west-facing elevations receive disproportionate UV loading relative to north and east faces. A building with mixed orientations may justify specifying AAMA 2605 on all elevations for finish consistency rather than applying different standards by facade. Visible color or gloss variation between elevations on the same building is a maintenance and aesthetic problem that is difficult to resolve after construction.

Salt fog resistance is addressed in both standards, but the exposure durations differ. AAMA 2605 requires 4,000 hours of salt spray exposure per ASTM B117; AAMA 2604 requires 2,000 hours. For coastal civic and institutional projects, that difference is directly relevant to the coating’s ability to maintain adhesion and resist corrosion at panel edges and fastener penetrations over the building’s service life.

ASHRAE 90.1 does not govern coating performance directly, but energy modeling assumptions for facade reflectivity over a 30-year lifecycle are undermined if the coating standard does not support finish durability through that period. A facade specified to contribute to reflectivity performance goals needs a coating that can maintain those optical properties, not just achieve them at installation.

A Warranty Is Only as Strong as the Standard It References

Finish warranties on aluminum facade systems are typically structured in tiers. Ten-year warranties are commonly backed by AAMA 2604-compliant coatings; 20 to 30-year warranties require AAMA 2605 compliance as a baseline condition. When a specification permits AAMA 2604 as an acceptable alternative to AAMA 2605, a contractor substituting the lower-tier coating may still offer a warranty document, but the coverage period and performance thresholds in that document will not match the owner’s lifecycle expectation.

In a value-engineering conversation, the warranty document is the most direct tool available to a specifier defending a 2605 requirement. Request the warranty alongside the product submittal and compare the chalk, fade and gloss retention commitments directly against the standard’s published limits. A warranty that does not name the performance thresholds it covers is not a performance warranty; it is a document.

Fairview’s Vitrabond FR aluminum composite panels are available with AAMA 2605-compliant PVDF coatings, and the product’s technical documentation is structured to support specification-level warranty alignment for long-lifecycle institutional projects. That alignment between the specification, the product data sheet and the warranty document gives an owner a defensible position if a finish claim arises years into the building’s service life.

Specification Language That Closes the Substitution Gap

Precise language is the specifier’s primary tool against substitution. Four practices make a coating specification defensible through the value-engineering process.

1. Name the standard explicitly and exclusively: “Coating shall comply with AAMA 2605; AAMA 2604 is not an acceptable alternative for this project.”
2. Reference the test methods by ASTM designation within the specification section so that submittal reviewers can verify compliance at the data sheet level, not just by product name.
3. Require the coating manufacturer’s certified test report, not a general product brochure, as a condition of submittal approval; this shifts the burden of proof to the submitting party.
4. Confirm that IBC Section 1603 documentation requirements are satisfied; construction documents must contain sufficient information to verify compliance, and a facade specification that names the performance standard and its test methods supports the owner’s position if a warranty claim arises.

A Short Decision Framework for Specifiers

Three conditions should guide the standard selection before the specification is issued.

1. If the building program includes a service life of 20 years or more, specify AAMA 2605 as the baseline. The incremental cost difference between coating tiers is small relative to the cost of early facade remediation.
2. If the project is in a coastal, high-UV or high-humidity environment, AAMA 2605 is the appropriate standard regardless of the service life target.
3. If the owner has expressed a preference for a specific color or finish family, confirm with the coating manufacturer that the selected color has been tested and certified to AAMA 2605 limits, not just to the standard in general. Color-specific certification matters because performance can vary across a palette.

Fairview’s architectural finish line, including Vitranar and Edgeline profiles, is available in AAMA 2605-compliant coatings across a broad color palette. That coverage supports specification consistency across panel types on a single project, which simplifies submittal review and warranty documentation when multiple facade products are involved.

Confidence Starts at the Specification Stage

The decision between AAMA 2604 and 2605 is not a procurement detail to resolve at submittal. It is a design decision with direct consequences for finish durability, warranty coverage and the owner’s long-term maintenance position. Making that decision explicitly, with the test methods and performance thresholds named in the specification, is the most reliable way to ensure the building’s facade performs the way the design intends.

If you are working through a specification for a long-lifecycle or environmentally demanding project and want to confirm that your coating requirements align with the right product documentation, Fairview’s technical team is available for a specification review or sample request. The conversation is most useful before the spec goes to bid.

The post AAMA 2604 vs 2605: Choosing the Right Spec for Your Project first appeared on Fairview Architectural North America.

The Cavity Is Not a Gap, It Is a Pressure Management Zone

A pressure-equalized rainscreen works by allowing cavity air pressure to equalize with exterior wind pressure, eliminating the differential that drives water inward. The cavity volume and geometry directly affect how quickly that equalization occurs, which means depth is a performance variable, not a stylistic one.

Depth also determines drainage velocity, drying potential and whether capillary contact between the cladding and the substrate is meaningfully broken. A cavity that is too shallow reintroduces the moisture risks the system was designed to eliminate. Water that cannot drain freely and air that cannot circulate leave incidental moisture with nowhere to go.

Treating depth as an inherited dimension, carried forward from a previous project without recalculation, undermines the pressure-equalization logic at the core of the assembly. ASTM E2128, the standard guide for evaluating water leakage of building walls, frames cavity behavior as a function of compartmentalization and pressure differential management. That framing positions the cavity as an engineered zone, not a construction gap.

Pressure Differentials and Wind Load Data Set the Floor

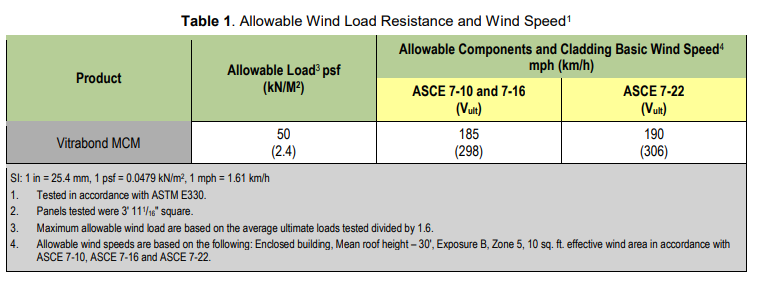

Local wind-load data from ASCE 7 establishes the design wind pressure the cavity must equalize against. Higher wind zones require faster equalization, which is a function of cavity volume and vent opening area working together. ASCE 7-22 Chapter 30 provides component and cladding wind pressure coefficients organized by exposure category and building height. These values are the starting input for any defensible cavity depth calculation, and they vary enough across projects that a single default dimension cannot serve all conditions.

The governing relationship is the ratio of vent opening area to cavity volume. A shallow cavity with adequate vent area can equalize pressure, but the margin for error shrinks considerably. Any obstruction, including insulation compression or fastener intrusion into the cavity plane, degrades performance in a shallow assembly faster than it would in a deeper one.

Drainage geometry compounds the pressure variable. Water moving down a 3/4-inch cavity behaves differently than water in a 2-inch cavity, particularly at horizontal interruptions such as shelf angles and window heads where drainage must redirect. Documenting the design wind pressure from the project-specific ASCE 7 analysis and carrying that number explicitly into the cavity depth rationale is the step that converts a dimension into a decision.

Thicker Insulation Shifts the Cavity Depth Conversation

ASHRAE 90.1 and the IECC have progressively increased continuous insulation requirements for commercial wall assemblies. In many climate zones, continuous insulation thickness for a metal-framed wall now runs from 2 to 4 inches, and that dimension sits between the structure and the cladding. ASHRAE 90.1-2022 Table A2 continuous insulation requirements for Climate Zones 4 through 7 illustrate the thicknesses now standard in commercial construction and the resulting wall assembly depths that require coordination.

The combined insulation-plus-cavity dimension affects the length and load path of the cladding attachment. Longer fasteners or sub-girt systems introduce thermal bridging and structural considerations that feed back into how the cavity is configured. An attachment system designed for a 1-inch cavity over minimal insulation is not the same system required when 3 inches of continuous insulation precedes the cavity.

Insulation surface texture and compressibility also matter. Rigid mineral wool has a compressible face that can encroach on the nominal cavity dimension if the attachment system is not designed to maintain a positive standoff. The cavity depth specification must be stated as a clear dimension from the insulation face to the back of the cladding panel, not as a residual dimension after other assembly components are placed. Residual dimensions are not verifiable in the field; clear minimum dimensions are.

Water Has to Move, and the Cavity Has to Let It

Drainage requires a clear, unobstructed path from the top of the cavity to the exit point at the base. The minimum cavity depth must account for the physical presence of fastener heads, clip flanges and any insulation irregularity that could create a dam or redirect water toward the substrate. Nominal dimensions on a detail sheet do not account for installed conditions; the specified minimum clear dimension must.

Drying potential is a function of airflow through the cavity. A deeper cavity with adequate top and bottom ventilation allows convective drying of incidental moisture that penetrates past the cladding. A cavity that is too shallow restricts airflow and extends drying time, increasing the duration of moisture exposure to the weather-resistive barrier and the structural substrate behind it.

Horizontal interruptions require specific attention. Floor-line shelf angles, window sill flashings and parapet conditions each represent points where drainage must redirect, and the cavity depth at these transitions must be verified in section rather than assumed to carry through from the field condition. Building Enclosure Council and NIBS guidance on rainscreen assemblies identifies drainage mat minimum free-space requirements and notes that effective drainage requires a minimum clear dimension accounting for installed, not nominal, component depths. That distinction between nominal and installed is where many details fail.

Code Minimums Are a Floor, Not a Specification

Some jurisdictions and standards reference minimum cavity dimensions, often in the range of 3/8 inch to 3/4 inch clear. These figures represent the threshold below which the assembly cannot function as a drained system. They are not design targets, and specifying them as such creates an assembly that meets the minimum definition of functional while providing no margin for field variation.

A project-specific minimum derived from wind pressure data, insulation type, cladding weight and attachment geometry will typically exceed the code floor, and that derived dimension is what belongs on the construction documents. When a building envelope consultant reviews the assembly, they will ask for the calculation basis. A specification that cites only a code minimum without project-specific justification is a liability gap, not a defensible position.

Fire-rated assemblies introduce an additional constraint. Tested assembly configurations under NFPA 285 specify component dimensions and air space conditions that must be replicated in the field. Deviating from the tested cavity dimension can void the fire-test compliance basis for the assembly. Any modification to cavity depth in a fire-rated rainscreen wall requires verification that the change falls within the scope of the tested assembly or triggers a new evaluation. This is not a detail that can be resolved during submittal review.

The Calculation Basis Is Part of the Specification

The cavity depth decision should be traceable to four documented inputs: design wind pressure from ASCE 7, continuous insulation thickness from the energy compliance path, drainage geometry from the attachment system layout and the fire-test assembly configuration where applicable. When these inputs are documented together, the specified dimension has a rationale that survives consultant review, owner questions and field conditions that differ from the schematic.

A one-page calculation summary or basis-of-design narrative that ties these inputs to the specified dimension gives the building envelope consultant a reviewable document and gives the owner a record that the decision was engineered. Specifying the cavity depth as a minimum clear dimension, stated in the wall assembly detail and in the specification section, removes ambiguity for the installer and creates a verifiable field condition.

Vitrabond FR aluminum composite material panels carry NFPA 285 compliance documentation that specifies tested assembly configurations, giving you a traceable starting point for cavity and insulation dimension coordination. Fairview’s technical team provides assembly-specific documentation support, including tested assembly references, that you can incorporate directly into the basis-of-design record rather than building that documentation from scratch.

A Practical Sequence for Arriving at the Right Cavity Depth

Working through cavity depth in a defined sequence keeps the decision connected to its inputs and makes the documentation straightforward to produce.

1. Start with the ASCE 7 design wind pressure for the project location, exposure category and building height. This is the pressure the cavity must equalize against and it sets the performance requirement before any other variable is introduced.
2. Confirm the continuous insulation thickness required by ASHRAE 90.1 or the applicable IECC edition for the climate zone. This determines the total wall build-out and the structural attachment requirements that follow.
3. Select the attachment system and confirm the clear cavity dimension it delivers after accounting for installed component depths, including fastener heads, clip flanges and insulation face irregularity.
4. Check the result against the tested assembly configuration for the cladding product. For Vitrabond FR panels, that means verifying the specified cavity and insulation dimensions fall within the NFPA 285 tested parameters.
5. State the result as a minimum clear dimension in both the detail and the specification, with the four-input calculation basis attached as a basis-of-design note.

If your current project is at the point where cavity depth is still being resolved, Fairview’s technical team is available to review assembly configurations and provide tested assembly documentation for Vitrabond FR. A detail review at this stage is considerably less costly than a redesign after the envelope consultant’s comments come back.

The post Rainscreen Cavity Depth: What the Numbers Actually Mean first appeared on Fairview Architectural North America.

Cavity Depth Controls Drainage Physics, Not Just Clearance

The instinct to treat cavity depth as a clearance dimension, something to satisfy rather than engineer, is understandable. It is also a source of persistent specification risk.

Airflow velocity through the cavity is a function of gap width, stack-effect height and the pressure differential between inlet and outlet. Narrower gaps reduce velocity and slow drainage in ways that are not linear. Capillary transport becomes a risk factor below approximately 10 mm (3/8 in.); at that scale, water can bridge between the cladding back face and the weather-resistive barrier surface and, under certain conditions, reverse drainage direction entirely.

The cavity must simultaneously accomplish three things: drain bulk water by gravity, allow residual moisture to evaporate through convective airflow and maintain pressure equalization to reduce inward water drive. These are not independent functions. A cavity dimensioned only to satisfy gravity drainage may still fail on drying and pressure equalization, and a failure on any one of the three undermines the assembly.

ASHRAE 90.1-2022 continuous-insulation requirements for Climate Zones 4 through 8 routinely produce wall assemblies where the insulation layer alone exceeds 3 inches. That single fact compresses the available cavity space within a fixed facade depth and makes dimensional trade-offs explicit rather than incidental. If you are working in those climate zones, cavity depth is not a residual dimension. It is a design decision that needs a documented basis.

How Gap Width and Surface Tension Interact in a Draining Cavity

Gravity drainage in a narrow vertical channel follows principles derived from open-channel hydraulics. Flow rate per unit width increases with the cube of gap width, which means small reductions in cavity depth produce disproportionate reductions in drainage capacity. Halving the cavity depth does not halve the drainage rate; it reduces it by roughly a factor of eight under idealized conditions.

Surface tension effects are negligible above approximately 12 to 15 mm (1/2 in.) but become significant below that threshold, particularly when the back face of the cladding panel is smooth and the WRB surface is also low-friction. Both conditions are common in aluminum cladding assemblies, where the panel back face is a painted or mill-finish aluminum surface and the WRB is a self-adhering membrane.

Debris accumulation at the base of the cavity compounds the problem over the service life of the assembly. Mortar droppings, insulation fragments and fastener washers can collectively reduce the functional gap by 3 to 6 mm, which means a cavity designed to 12 mm may perform at 6 to 9 mm within a few years of installation.

The National Building Code of Canada and several state-adopted versions of the IBC commentary reference a minimum 10 mm drained cavity as a baseline. Published research from the Building Science Corporation documents measurably improved drying rates at 19 mm (3/4 in.) and above in mixed-humid and cold climates. Those two data points together define a range: 10 mm is a code floor, not a design target, and 19 mm is where performance becomes reliably defensible.

A Drainable Cavity That Cannot Dry Is Only Half a Solution

Drainage removes bulk water. Drying removes the residual moisture film and vapor that remain after drainage, and drying depends on convective airflow velocity through the cavity, not gravity alone. An assembly that drains quickly but dries slowly can still accumulate moisture at the WRB face over repeated wetting cycles.

Airflow modeling studies consistently show that cavities below 19 mm (3/4 in.) produce laminar, low-velocity flow that extends drying time by a factor of two to three compared with 25 mm (1 in.) cavities under equivalent conditions. The height-to-depth ratio of the cavity affects the stack-effect driving force; taller walls benefit more from increased cavity depth than shorter ones, but the 19 mm threshold holds across typical commercial building heights.

Inlet and outlet geometry matters as much as cavity depth. A correctly dimensioned cavity paired with blocked or undersized vents at the base and head will still underperform on drying regardless of the gap dimension. Cavity depth and vent sizing are co-dependent variables that need to be specified together.

ASHRAE 160-2021, Criteria for Moisture-Control Design Analysis in Buildings, provides the hygrothermal analysis framework that envelope consultants use to evaluate drying potential. Specifying a cavity depth without referencing a drying-rate criterion leaves the assembly without a performance basis that survives peer review. If your specification does not give the reviewer a standard to check against, the reviewer will supply their own, and it may not be the one that supports your design.

Specific Depth Criteria You Can Cite in a Specification

The following thresholds are supported by published research and code references and can be cited directly in project documents.

1. 10 mm (3/8 in.) is the documented lower bound for gravity drainage function, referenced in several code commentaries. It should be treated as an absolute minimum under controlled conditions, not a design target. Assemblies specified at this dimension have no tolerance for debris accumulation or construction variation.
2. 19 mm (3/4 in.) is the widely cited practical minimum for combined drainage and drying performance in North American climate conditions, supported by Building Science Corporation field studies and referenced in the WBDG Whole Building Design Guide rainscreen guidance. This is the number that holds up in a consultant coordination meeting.
3. 25 mm (1 in.) is the recommended design dimension for Climate Zones 5 through 8 and for any assembly where the cladding back face is impermeable. Aluminum composite material and solid aluminum plate panels are impermeable cladding systems; they do not absorb or redistribute moisture, which concentrates all moisture management responsibility on the cavity itself. Specifying 25 mm for these assemblies is not conservative; it is appropriate to the material.
4. Cavities exceeding 38 mm (1.5 in.) introduce wind-washing risk at the insulation face and may require baffling or compartmentalization to maintain thermal performance without creating a bypass path around the continuous insulation layer.

AAMA 508-07, Voluntary Test Method and Specification for Pressure Equalized Rain Screen Wall Cladding Systems, defines pressure equalization performance criteria and implicitly requires cavity geometry sufficient to allow pressure equilibration. A cavity depth that impairs airflow also impairs pressure equalization, which links drainage design directly to water penetration resistance. That connection is worth making explicit in your specification narrative.

Thicker Insulation Layers Compress the Cavity Unless Assembly Depth Is Managed

A Climate Zone 6 commercial wall assembly complying with ASHRAE 90.1-2022 Table C402.1.3 may require 4 to 5 inches of continuous exterior insulation. When you add the structural backup wall, WRB, insulation thickness and cladding attachment system, the available envelope depth before the cladding face is established is constrained in ways that were not common in pre-2019 construction.

Value-engineering pressure on facade depth frequently targets the cavity as a compressible dimension, because it appears to have no structural or thermal function that can be quantified on a cost-per-R-value basis. The physics documented in this article give you the technical basis to hold the cavity dimension against that pressure. A cavity reduced from 19 mm to 10 mm to save a fraction of an inch of facade projection is not a neutral trade; it is a measurable reduction in drainage capacity and drying rate.

The practical solution is in the sub-framing geometry. Bracket standoff systems for aluminum cladding products can be configured to maintain a defined cavity depth independent of insulation thickness. The bracket standoff dimension is the control variable. Adjusting it does not require changing the insulation specification or the structural backup wall; it requires a deliberate decision at the detail level that is documented in the project specification.

The IECC 2021 commercial energy provisions align with ASHRAE 90.1 on continuous insulation requirements and are adopted in a majority of US jurisdictions. Assemblies designed to meet these requirements without explicit cavity-depth documentation create a specification gap that can produce field substitutions that compromise drainage performance. The substitution may be technically compliant with the energy code while being non-compliant with the moisture management intent of the assembly.

Translating Dimensional Criteria Into Enforceable Specification Language

Dimensional criteria that exist only in the designer’s head or in a consultant report do not survive the submittal and substitution process. They need to appear in the contract documents in language that can be verified.

Cavity depth should appear in Division 07 42 43 (Faced Metal Panel Assemblies) as a minimum clear dimension measured from the back face of the cladding panel to the face of the weather-resistive barrier or insulation, not as a nominal sub-framing dimension. Nominal sub-framing dimensions do not account for insulation compression at bracket locations, which is where the functional gap is most likely to be reduced.

The specification should require the installer to verify and document the as-built cavity dimension at defined intervals. Inlet and outlet vent sizing should be specified in coordination with the cavity depth; a common reference is 1 square inch of net free area per linear foot of wall width at both the base and head of each cavity compartment, adjusted for cavity depth and wall height.

Fairview sub-framing systems for Vitrabond FR and Vitraplate are engineered to maintain defined standoff dimensions, giving you a documented assembly depth that can be entered directly into the project specification and verified during shop drawing review. That documentation path, from the engineered sub-framing dimension to the specification language to the shop drawing, is what makes the cavity depth enforceable rather than aspirational.

Cavity Depth Is a Performance Decision, and It Deserves a Performance Basis

The dimensional guidance in this article is grounded in drainage physics, supported by published research from the Building Science Corporation and the WBDG and tied to the standards, including ASHRAE 90.1-2022, ASHRAE 160-2021 and AAMA 508-07, that building envelope consultants will reference when they review your drawings.

Specifying 19 mm as a practical minimum and 25 mm for impermeable cladding systems in cold and mixed-humid climates is a position you can defend with citations, not just experience. Documenting that position in Division 07 language that references clear dimensions and verified as-built conditions is what converts a design intent into a built result.

If you are working through a wall assembly where continuous insulation requirements are compressing your available cavity depth, or if you want to review how Fairview sub-framing geometry can be configured to maintain your specified dimension, contact the Fairview technical team for a specification consultation or detail review. The conversation starts with your assembly.

The post How Rainscreen Cavity Depth Affects Drainage Performance first appeared on Fairview Architectural North America.

Why Wind Pressure, Not Rain Volume, Is the Real Moisture Threat

The intuitive explanation for wall water intrusion is precipitation volume: more rain means more risk. The more accurate explanation is pressure differential. Wind creates a positive pressure zone on the windward face of a building and a corresponding negative zone at joints, transitions and reveals. That differential actively pulls water inward regardless of how hard it is raining, which means a modest storm at high wind speed can drive more moisture through a joint than a heavy rain event in calm conditions.

Face-sealed assemblies resist this force through continuous sealant integrity. The problem is that any breach, however small, becomes a pressure-driven entry point rather than a passive gap. Sealant degrades, substrate movement opens hairline separations and the pressure differential does the rest. In mid-rise and high-rise construction, the stack effect amplifies interior-to-exterior pressure gradients at upper floors, compounding the risk at exactly the elevations where facade callbacks are most expensive to remediate.

IBC Section 1402 requires that exterior wall envelope assemblies provide a drainage plane and a means of drainage. Face-sealed systems that depend solely on sealant continuity are increasingly difficult to document as compliant under this provision, particularly as plan reviewers in jurisdictions with high wind-driven rain exposure apply the code language more rigorously.

Equalizing the Pressure Differential Before Water Has a Reason to Move

A pressure-equalized rainscreen assembly, commonly abbreviated PER, introduces a vented cavity between the cladding panel and the air barrier. When wind loads the building face, air enters the cavity through calibrated vents and the cavity pressure rises to match exterior wind pressure. Once that differential across the outer panel face drops toward zero, water at the joint has no pressure gradient to follow inward.

Equalization depends on three interdependent variables: cavity volume, vent opening area and vent placement. Optimizing one without the others produces a cavity that drains but does not equalize. A deep cavity with undersized vents responds too slowly; a well-vented cavity without compartmentalization allows pressure waves to travel laterally and undermine equalization at adjacent bays. Compartmentalization, dividing the cavity into discrete pressure zones with horizontal and vertical barriers, is what converts a vented gap into a functioning PER assembly.

The outer cladding layer in a true PER assembly functions as a rain deflector, not a waterproofing membrane. The air barrier behind the cavity carries the actual water-control responsibility. This distinction matters for specification writing: performance requirements placed on the cladding panel that belong on the air barrier create a documentation gap that surfaces during peer review or, worse, during a post-occupancy moisture investigation.

AAMA 508-07 establishes the laboratory protocol for verifying equalization performance and is the standard most peer-reviewed specifications reference when documenting PER compliance. If your project narrative claims a PER assembly, AAMA 508-07 is the reference that gives that claim a verifiable basis.

The Cavity Is a Calculated Component, Not a Construction Tolerance

A minimum cavity depth of 19 mm (3/4 inch) is commonly cited in North American practice, but projects with high wind-driven rain exposure or tall building profiles frequently require 38 mm (1-1/2 inch) or greater to achieve adequate equalization response time. Treating the cavity as a byproduct of subframe geometry rather than a calculated dimension is the specification decision that most often produces a vented rainscreen that looks correct on paper but does not equalize under dynamic wind loading.

Vent opening ratios, expressed as a percentage of cladding face area, must be sized to allow rapid pressure equalization without admitting enough airflow to re-entrain water droplets. The balance point is project-specific and climate-dependent; a ratio appropriate for a low-rise building in a temperate zone may be inadequate for a high-rise in a coastal exposure category. Horizontal vent placement at the base of each compartment zone and at head conditions allows gravity drainage to work in concert with equalization, removing any water that does penetrate before it contacts the air barrier.

The specification decision that separates a documented PER assembly from a vented rainscreen that happens to have a gap is this: cavity depth and vent sizing belong in the facade specification section, not delegated to the fabricator’s shop drawings. When those dimensions are left to the shop drawing stage, the design team loses the ability to verify equalization geometry before fabrication begins.

One coordination issue that arises on nearly every commercial project is the interaction between continuous insulation and cavity depth. ASHRAE 90.1-2022 continuous insulation requirements frequently push insulation into the zone where the cavity needs to live. Resolving that conflict at the specification stage, not during construction administration, preserves the equalization geometry the assembly depends on.

Equalization Works Only When the Air Barrier Is Continuous and Verified

The air barrier is the true control layer in a PER assembly. It must be continuous across wall-to-roof transitions, window rough openings and penetrations to prevent the cavity from short-circuiting to the interior. A cavity that communicates with conditioned interior space through an incomplete air barrier does not equalize; it pressurizes the interior instead.

Air barrier continuity is a coordination responsibility that spans the facade specification, the window specification and the roofing specification. Gaps in coordination produce gaps in the barrier, and those gaps are rarely visible during construction administration without a deliberate inspection protocol. ASHRAE 90.1 Section 5.4 requires continuous air barriers in commercial construction and defines maximum air leakage rates; a properly documented PER assembly with a tested air barrier addresses this provision directly and supports the energy model used for code compliance.

Third-party air barrier testing through ASTM E2357 for whole-assembly air leakage and ASTM E783 for field measurement provides the documented performance evidence that building committees and peer reviewers increasingly expect on commercial projects. Specifying the test method in the contract documents, not just the performance threshold, is what makes that evidence collectible.

Panel Selection Affects Equalization Geometry, Not the Other Way Around

Panel material, thickness and attachment method all influence the structural depth of the subframe, which determines the available cavity depth. Panel selection and cavity design must be developed concurrently; treating panel selection as the first decision and cavity geometry as a downstream consequence is the sequencing error that produces assemblies where equalization performance is assumed rather than verified.

Aluminum composite panels with routed and folded returns create predictable joint geometries that can be sized for open-joint or baffled-joint configurations, each with different vent area characteristics and equalization response profiles. Vitrabond FR, Fairview’s fire-retardant aluminum composite panel, uses a mineral-filled core formulated to support compliance with NFPA 285 in tested assembly configurations, which means the fire performance and the moisture management strategy can be documented together rather than reconciled after the fact.

Solid aluminum plate panels behave differently under wind load cycling than composite panels. Greater stiffness and mass affect deflection characteristics, which in turn affect joint width consistency over time and therefore long-term vent area stability. Vitraplate, Fairview’s solid aluminum plate product, is specified where that stiffness profile is an asset, but the joint geometry implications still require the same upfront coordination as any other panel type.

Finish durability is a separate specification decision from equalization performance, but the two are connected. A finish that degrades and requires early replacement disrupts the cavity geometry and triggers the same moisture risk the assembly was designed to prevent. Vitrabond FR and Vitraplate are finished to AAMA 2605 standards using 70% PVDF coatings, which defines the performance threshold for finish longevity on architectural aluminum panels.

Moisture Management Is No Longer a Best Practice, It Is a Documented Requirement

IBC Chapter 14 requires exterior walls to resist wind-driven rain and provide a drainage plane. The 2021 and 2024 editions include more explicit language on drainage plane continuity, making face-sealed-only strategies harder to defend in plan review. Many jurisdictions have adopted ASHRAE 90.1 by reference into their energy codes, meaning the air barrier and continuous insulation provisions carry the force of law on permitted commercial projects.

NFPA 285-2019 requires that any exterior wall assembly incorporating foam plastic insulation or combustible cladding components be tested as a system. Substituting components after the fact, even components that appear equivalent, restarts the compliance analysis. Specifying a tested assembly configuration from the outset is the compliance path that survives AHJ scrutiny.

Documenting the PER design rationale in the project specification, the basis-of-design narrative and the submittal package creates the paper trail that protects the design team if a moisture callback occurs years after substantial completion. The physics of pressure equalization are well established; the professional exposure from an undocumented assembly is what remains variable.

Making the Case to a Building Committee

The argument for a pressure-equalized rainscreen assembly is not that it costs less than a face-sealed facade. It does not, at least not initially. The argument is that it transfers moisture risk from the sealant joint, which degrades, to a documented system of cavity geometry, air barrier continuity and verified vent sizing, which can be tested, inspected and maintained.

When you can show a building committee the code provisions in IBC Section 1402 and ASHRAE 90.1 Section 5.4, the test standards in AAMA 508-07 and ASTM E2357 and the assembly-level fire compliance path through NFPA 285, the conversation shifts from “why does this cost more” to “what does the documentation package look like.” That is a more productive conversation, and it is one where the physics support you.

If you are working through cavity depth, vent sizing or panel selection for a current project, Fairview’s technical team is available to review assembly details and provide specification language calibrated to your exposure conditions. A detail review early in design development costs far less than a coordination problem discovered at the shop drawing stage.

The post How Pressure Equalization Reduces Wall Water Intrusion first appeared on Fairview Architectural North America.

The Report Is Not a Product Certificate, It Is an Assembly Record

NFPA 285 tests a complete wall system, not an individual panel. The pass result belongs to the exact configuration tested, including every layer in sequence, every product in its documented position and every dimensional parameter recorded during the test. That distinction matters because IBC Section 1402.5 requires that exterior wall assemblies incorporating combustible materials on buildings over 40 feet in height comply with NFPA 285, and that compliance is assembly-specific, not product-specific.

Substituting one variable, such as swapping insulation type or changing the position of the air barrier, creates an untested assembly even if the panel itself is identical to the one in the report. The IBC requirement and the NFPA 285 standard define compliance at the system level. No single component carries a standalone pass rating that transfers to a different configuration. When a submittal arrives on your desk, the first question is not whether the panel passed; it is whether the assembly you are building matches the assembly that was tested.

What to Read Before You Read the Pass/Fail Result

Six variables in a test assembly, when changed, move the project outside the documented compliance boundary. Reviewing these before accepting a submittal is the core of the verification process.

1. Panel core composition and thickness. Aluminum composite panels with a fire-rated mineral-filled core are tested as a distinct core type. A panel using a standard polyethylene core is a different assembly, regardless of whether the face material, finish or panel dimensions are otherwise identical. Vitrabond FR uses a fire-rated mineral-filled core that is specific to its tested configurations.
2. Insulation type, density and thickness. Mineral wool and rigid foam products are not interchangeable within a tested configuration. Even a one-inch change in insulation thickness can place the assembly outside the tested parameters, because thermal mass and flame propagation behavior are functions of the complete insulation layer as documented.
3. Air and weather-resistive barrier product and position. The specific WRB or air barrier membrane, its location relative to the insulation plane and its attachment method are all recorded variables in the test report. A fluid-applied product and a self-adhered membrane are different products; a membrane installed over the insulation and one installed under it are different positions.
4. Framing substrate and cavity depth. Stud gauge, spacing and cavity dimension affect how heat moves through the assembly during a fire event. These are documented in the test assembly, and deviations from them are not automatically conservative.
5. Cladding attachment system. Rail-and-bracket geometry, fastener pattern and standoff dimension are part of the tested configuration. A change in standoff depth alters the ventilated cavity behavior that was present during the test.

NFPA 285 Section 8, which governs test assembly construction, requires the test report to document each of these variables. A compliant submittal must match each field in that section against the project specification. That comparison is the work; reading the pass/fail result is only the last step.

Equivalency Is Not Guaranteed, and Assumptions Are Costly

Some authorities having jurisdiction accept engineering judgments or comparative analysis when an assembly deviates modestly from a tested configuration. Others require a new test or a third-party fire engineering letter. There is no national standard for what constitutes an acceptable deviation, and AHJ interpretation varies by jurisdiction, by reviewer and sometimes by project type.

This creates a specific risk in the submittal workflow. A submittal accepted at plan review can still trigger a stop-work order during inspection if the installed assembly does not match the approved documents, which in turn may not have matched the test report. The gap between what was tested, what was submitted and what was approved can remain invisible until construction is underway.

IBC Section 104.11 grants AHJs authority to approve alternative materials and methods, but that approval is discretionary and project-specific. It is not transferable to other projects or other jurisdictions. Relying on a favorable AHJ interpretation from a previous project to cover a deviation on the current one is not a defensible position.

The Structured Review That Protects the Specification

The following sequence is designed to be used at the submittal desk, not reconstructed after a rejection.

1. Obtain the full test report, not a summary sheet or a certificate of compliance. The complete report includes the assembly drawing, the bill of materials and the test observations. Summary documents do not contain enough information to perform a meaningful comparison.
2. Map each layer of the project wall build-up against the corresponding layer in the test assembly drawing, in order from the interior substrate outward.
3. Confirm the following in sequence:
4. 1. Panel product name, core type and nominal thickness match exactly
5. 2. Insulation product, R-value and thickness match exactly
6. 3. Air barrier or WRB product name and position match exactly
7. 4. Framing type, gauge and spacing match or fall within tested parameters
8. 5. Attachment system geometry and standoff dimension match or are covered by a documented engineering judgment from the panel manufacturer
9. Flag any variable that does not match and request written clarification from the supplier before accepting the submittal.

Fairview provides project-specific assembly documentation with Vitrabond FR submittals, including tested configuration drawings that can be compared directly against the project wall section. That documentation is intended to make this comparison straightforward rather than interpretive.

Where Submittals Most Frequently Fall Short

Across the range of submittal review activity that Fairview’s technical team encounters, four categories of mismatch appear consistently.

1. The test report covers a mineral wool assembly but the project specification calls for polyisocyanurate or extruded polystyrene insulation. The supplier submits the report without noting the discrepancy, and the difference is not caught until a third party reviews the package.
2. The tested assembly used a specific fluid-applied air barrier. The project substitutes a self-adhered membrane from a different manufacturer, which is a different product in a different position relative to the insulation plane.
3. The panel thickness in the report is 4mm but the specified panel is 3mm. The supplier assumes the thicker panel is the conservative direction and does not flag the difference. Whether that assumption is valid depends on how panel mass figures into the tested assembly behavior, and that determination belongs to a fire engineer, not a submittal cover letter.
4. The test report documents a ventilated rainscreen cavity of a specific depth. The project detail closes the cavity or changes the standoff dimension, altering the airflow behavior that was part of the tested condition.

These categories of mismatch are consistent with findings in fire engineering peer review literature and with the clarification requests Fairview’s technical team regularly processes during submittal review. None of them are unusual, and none of them are automatically disqualifying if caught early and addressed with proper documentation.

Front-Loading the Verification Reduces Submittal Cycle Time

The most efficient point to resolve assembly compliance questions is during design development, before the specification is issued for bid. Several steps taken at that stage reduce the probability of submittal rejection and the schedule impact that follows.

1. Request the manufacturer’s current tested assembly matrix during design development. This document should list all approved configurations by insulation type, thickness and air barrier product, giving you a clear picture of what the manufacturer can support before you write the specification.
2. Ask whether the manufacturer provides engineering judgments for common assembly variations and what the documented basis for those judgments is. An engineering judgment without a documented methodology is not a reliable compliance instrument.
3. Confirm that the test report on file is current. NFPA 285 test protocols have been updated over time, and reports generated under earlier versions of the standard may require review against the current IBC edition adopted in the project jurisdiction.
4. For high-rise or mixed-use projects, consider requesting a pre-submittal technical review with the manufacturer’s code compliance team before the specification is issued for bid.

Fairview’s technical support team offers pre-specification assembly review for projects subject to IBC Section 1402.5. That review is intended to surface assembly compatibility questions before they become submittal problems, reducing the risk of rejection and the downstream schedule impact that accompanies it.

Verification Is a Specification Discipline, Not a Submittal Formality

Accepting an NFPA 285 test report without confirming assembly-level alignment is one of the more common and more consequential gaps in the submittal review process. The standard is clear, the IBC requirement is specific and the consequences of a mismatch, ranging from AHJ rejection to stop-work orders to remediation costs, fall on the project team rather than the supplier.

The checklist in the fourth section of this article is designed to be used at the submittal desk, not after the fact. Specifiers who build this review into their standard submittal workflow reduce exposure at every project stage, from plan review through final inspection.

Fairview’s position is straightforward: tested assemblies should be documented, accessible and matched to the project before the specification is issued. That is what building with confidence means in practice.

If you are currently specifying an exterior wall assembly subject to IBC Section 1402.5, Fairview’s technical team can provide tested assembly documentation for Vitrabond FR configurations and answer questions about assembly equivalency before your submittal package is assembled. Contact the technical team at fairview-na.com.

The post NFPA 285 Test Reports: What Specifiers Must Verify first appeared on Fairview Architectural North America.

The Physics of a Bent Panel and Why Standard Coatings Struggle

When aluminum is brake-formed, the substrate on the outside of the bend elongates while the material on the inside compresses. A coating film bonded to that substrate must follow both movements simultaneously. If the coating’s elongation-at-break is insufficient to accommodate the strain, the film fractures at the fold line.

That fracture is not always visible at the bench. Micro-cracking at the fold line can be invisible under normal inspection conditions and only become apparent after UV exposure, moisture cycling or thermal expansion in service. By the time the defect is visible, the substrate has already been exposed to corrosion pathways for weeks or months.

The tighter the bend radius relative to material thickness, the greater the strain demand placed on the coating film. A generous radius distributes that strain over a longer arc; a tight radius concentrates it in a narrow band. Crazing is not a surface condition that can be buffed out or touched up. It is a structural failure of the film, and once the barrier is broken, the coating has stopped doing its primary job.

AAMA 2605 requires coatings to pass both a direct impact test and a T-bend test, but the standard qualifies coating systems on flat panels. When a project calls for sub-2T bend radii on formed returns, the qualification geometry and the fabrication geometry are no longer the same thing.

PVDF Performance Is Proven on Flat Stock, Not on Tight Returns

Polyvinylidene fluoride resin is a well-established finish chemistry for architectural aluminum. Its UV resistance, chalk resistance and color retention on flat or gently curved surfaces are documented across decades of Florida and Arizona exposure testing. The performance record is real.

The limitation is mechanical, not weathering-related. The rigidity that gives PVDF its durability in a weathering environment also constrains its elongation-at-break. A 90-degree brake-formed return on a 3mm aluminum composite panel can impose localized strain well beyond what many formulations will tolerate at the outer radius.

Specifying PVDF by name does not automatically mean the coating system is appropriate for the fabrication geometry the shop is running. The resin content requirement and the AAMA 2605 qualification protocol are both written around weathering performance. Together they do not address post-forming elongation on tight-radius geometry. A coating can satisfy both documents completely and still crack on a 1T return.

Elongation-at-Break Is the Specification Variable That Changes the Outcome

Flexible resin coating systems address the forming problem directly by modifying the binder chemistry to raise elongation-at-break. A film that can deform sufficiently follows the substrate through the bend without fracturing, which means the barrier function of the coating is maintained at the fold line, the point on a formed panel most exposed to moisture and corrosion.

The mechanical compliance of a flexible formulation does not require sacrificing weathering performance. Flexible systems can be engineered to meet the UV resistance and color stability benchmarks required under AAMA 2605 while adding the elongation properties the standard does not directly test. The two performance attributes are not in opposition; they are addressed by different aspects of the formulation.

Film build matters in this context. A thicker coating on a flexible resin system provides more material to distribute strain across the bend. On a rigid system, a thicker film concentrates stress and increases the risk of fracture. The relationship between film thickness and forming performance runs in opposite directions depending on the resin chemistry, which is one reason the technical data sheet for the specific coating system matters more than a generic PVDF specification.

Fairview’s Vitrabond FR aluminum composite panels are available with coating systems formulated for post-forming applications. The combination of AAMA 2605-level weathering performance and the elongation properties required for tight-radius fabrication is not a trade-off; it is the design intent of the product.

The Conversation Between the Shop Drawing and the Finish Spec Has to Happen Early

Minimum bend radius is expressed as a multiple of material thickness: 1T, 2T or 3T. A 1T bend on a 4mm panel is a 4mm inside radius. That is an aggressive geometry for most coating systems, and it appears on shop drawings more often than finish specifications account for it.

When the architectural finish specification calls for a standard PVDF system and the shop drawing calls for a 1T or 2T return, those two documents are in conflict. The conflict may not be flagged by anyone reviewing either document in isolation. The fabricator is the first person to hold both documents at the same time, which puts the fabricator in the best position to identify the mismatch before the first panel is formed.

Requesting a coating elongation data sheet from the finish supplier before committing to a production run is a standard quality control step. Any coating supplier with a product formulated for post-forming applications will have the data. If the data sheet does not include an elongation-at-break value, that absence is itself informative.

IBC Chapter 14 governs exterior wall envelope performance. Coating failure that allows moisture infiltration at panel returns can implicate the broader wall assembly, not just the finish warranty. The stakes of an unresolved specification conflict extend beyond the panel itself.

The Technical Language That Gets the Right Coating Into the Specification

Four steps move the elongation requirement from a verbal conversation into the project record.

1. Request that the finish specification include a minimum elongation-at-break value, stated in percent, alongside the standard AAMA 2605 weathering requirements. A value of 50 percent or greater is a reasonable threshold for projects with 1T or 2T returns.
2. Ask the coating supplier to provide test data showing elongation performance on the specific substrate and thickness being used, not on a generic test panel. Performance on a 3mm composite panel and a 4mm solid plate are not interchangeable.
3. If the architect’s specification does not include elongation language, submit a Request for Information citing the bend geometry and asking for confirmation that the specified coating system is appropriate for the formed condition. AAMA 2605 Section 7.9 covers flexibility and adhesion testing; referencing that section gives the RFI a technical anchor that architects and specifiers recognize.
4. Document the RFI response in the project record. If the architect confirms the standard coating is acceptable and crazing occurs in service, the liability chain is clear and the fabricator’s position is documented.

Four Data Points That Tell You Whether a Coating Can Handle Your Geometry

1. Elongation-at-break: pull the value from the technical data sheet and compare it against the strain demand of your tightest specified bend radius before committing to a coating system.
2. T-bend test results: a coating that passes a 0T or 1T bend test on the actual substrate without cracking or adhesion loss is demonstrating real-world forming compliance, not flat-panel weathering performance.
3. Cross-hatch adhesion after forming: adhesion loss at the fold line is a separate failure mode from visible cracking. A coating can remain visually intact but have lost adhesion to the substrate, which allows moisture ingress over time without any visible surface indication.
4. Thermal cycling performance after forming: panels on a facade move through a daily and seasonal temperature range. A coating that survives the forming process but fatigues under repeated thermal cycling is not a durable solution for an exterior application.

AAMA 2605 requires a minimum of 50 percent gloss retention after 10 years of Florida exposure. A flexible resin system qualified to that standard and also tested to 0T bend performance gives you a defensible specification position on both weathering and forming. The two qualifications together close the gap that either document leaves open on its own.

Specifying for the Panel You Are Actually Building

The coating failure mode described here is predictable and preventable. It does not require a new fabrication process or a departure from AAMA 2605 performance requirements. It requires a finish specification that accounts for the geometry the shop is producing.

Fairview formulates and supplies aluminum composite and solid plate products, including Vitrabond FR, with coating systems designed for the full range of fabrication conditions that appear on real projects: tight-radius returns, reveals and complex brake-formed geometry. The goal is to give fabricators the material performance and the technical documentation to build with confidence, without absorbing warranty risk that belongs in the specification.

If you are reviewing a project with specified returns under 2T and a standard PVDF finish, contact Fairview’s technical team to request elongation data for the relevant substrate and coating combination. Bring the shop drawing and the finish specification to that conversation. The two documents need to agree before the first panel is formed.

The post Flexible Resin Coatings and Tight-Radius Panel Bends first appeared on Fairview Architectural North America.

The Envelope Has Become a Due Diligence Line Item

Property condition assessments conducted under ASTM E2018 now routinely include facade envelope review, and warranty documentation is requested as part of that process. The standard establishes the baseline scope for what a competent PCA covers, and the building envelope, including its documented warranty status, sits within that scope.

Lenders and institutional buyers treat undocumented or expired envelope coverage as a deferred maintenance risk. That risk feeds directly into cap rate adjustments and reserve fund requirements, which means a warranty gap is not an abstract concern; it is a number that appears in the underwriting model. A warranty that cannot be verified, transferred or quantified in remaining term provides no negotiating leverage, regardless of the panel’s actual physical condition.

The shift toward ESG-aligned asset reporting has added another layer of scrutiny. Building envelope performance documentation, including finish durability records and fire compliance certifications, is increasingly part of the sustainability and risk disclosure package that institutional buyers expect. Sellers who have assembled that documentation in advance are better positioned than those who have not.

Transferability Is a Defined Legal Term, Not a Marketing Phrase

A genuinely transferable warranty assigns coverage to the building, not the original purchaser. A subsequent owner steps into the same documented protection without renegotiation or reissuance. That distinction matters because many warranty documents use language that sounds transferable but conditions coverage on the original contracting relationship.

Review the warranty document for explicit transfer language. Absence of that language typically means coverage lapses at the point of sale, regardless of remaining term. Some manufacturers require written notice of transfer within a defined window after closing; missing that window can void coverage even when the warranty is nominally transferable. That is a procedural risk that surfaces only when someone reads the document carefully, which buyers’ counsel will do.

Buyers’ counsel and their PCA consultants will ask for the original warranty certificate, the transfer clause and any recorded transfer notices as part of standard document review. If those items are not available at the start of due diligence, the gap becomes a negotiating point.

Vitrabond FR and Vitraplate warranties from Fairview are issued to the building and transfer with title, with no reissuance fee. That structure means coverage follows the asset through its ownership history without requiring the incoming owner to negotiate new terms or absorb an administrative cost at closing.

A Prorated Warranty in Year Twenty Is Not Coverage, It Is a Discount Schedule

Prorated warranties reduce the manufacturer’s financial obligation on a straight-line or accelerating schedule. By the midpoint of a typical 30-year term, the covered replacement value may be a fraction of original cost. From a buyer’s perspective, a prorated warranty in year eighteen or twenty provides no meaningful protection against a full panel replacement event, which is the scenario that matters most in risk modeling.

Non-prorated warranties hold the manufacturer to full replacement or remediation cost for the duration of the stated term. That structure carries documentable value through a transaction because the covered obligation does not diminish as the building ages.

If you are preparing a building for sale, pull the warranty document and calculate remaining covered value before listing. A prorated warranty presented without that analysis will be discounted by any competent buyer’s advisor. The calculation is straightforward, but it needs to happen before the PCA engagement begins, not during it.

Fairview’s finish warranties under AAMA 2605-compliant Kynar 500 coatings are structured on a non-prorated basis, specifying minimum performance thresholds for chalk rating, fade measured in delta-E units and film adhesion over the full warranty period. The covered obligation does not step down as the term progresses.

Two Separate Warranties Govern Two Separate Risks

A finish warranty covers coating performance: chalk rating, fade and film adhesion, tied to the coating specification. AAMA 2605 is the governing specification for high-performance architectural coatings using Kynar 500 resin, and it sets meaningfully higher durability expectations than the AAMA 2604 or AAMA 2603 tiers. A finish warranty issued under AAMA 2605 carries more weight in due diligence than one issued under a lower tier, because the underlying performance standard is more demanding.

A system or product warranty covers the structural integrity of the panel itself, including delamination in composite products and dimensional stability in solid plate. These are governed by separate terms and separate durations. Both warranties must be transferable and non-prorated to provide meaningful protection. A transferable finish warranty paired with a prorated product warranty still leaves the buyer exposed to the higher-cost risk, which is full panel replacement.

When assembling your due diligence package, confirm transfer language in each document separately and verify that the coating specification on record matches the installed product. A mismatch between the specification cited in the warranty and the product actually installed is a material discrepancy that will surface in the PCA.

NFPA 285 Compliance Records Travel With the Building, Not the Architect

For buildings where the facade system was required to meet NFPA 285 fire propagation testing, the test report and any engineering judgments issued for the specific assembly are material documents in a sale. They establish that the installed system was code-compliant at the time of construction and that the assembly configuration was evaluated against a recognized fire test standard.

If those records are held only by the original architect of record or the installing contractor, they may not surface in due diligence without a deliberate effort to locate and transfer them. That effort is worth making before listing, not after a buyer’s counsel identifies the gap.

Buyers of mid-rise and high-rise buildings with combustible-core composite panel systems will increasingly require NFPA 285 compliance documentation as a condition of closing, particularly in jurisdictions that have adopted IBC 2021 or later. The code trajectory on this point is clear, and buyers’ advisors are aware of it.

Vitrabond FR carries NFPA 285-tested assembly status, and Fairview issues engineering judgments for code-compliant configurations. Assembling those records alongside warranty documents positions you as a prepared counterparty and reduces the risk of a late-stage price adjustment tied to missing documentation.

Documentation Assembled Before Listing Performs Better Than Documentation Assembled Under Pressure

The warranty package a seller presents should include:

1. The original warranty certificate with issue date and term
2. The transfer clause with any recorded prior transfers
3. The coating specification confirming AAMA 2605 compliance and Kynar 500 resin
4. The NFPA 285 test report or engineering judgment for the installed assembly

Gaps in that package will be identified in the PCA. They will generate either a price reduction request or a warranty escrow requirement, both of which reduce net proceeds. The cost of assembling the documentation in advance is a fraction of the cost of negotiating around its absence.

Manufacturers with a documented history of honoring warranty claims and supporting transfer requests provide a stronger due diligence narrative than those with no public record of claim resolution. Fairview’s North American manufacturing presence and operational continuity are relevant factors here. A 30-year warranty is only as credible as the organization standing behind it, and that credibility is part of what buyers’ advisors evaluate.

If the warranty document is missing or the original manufacturer is no longer operating, obtain a third-party facade condition assessment to establish a documented baseline. That assessment does not replace warranty coverage, but it provides a defensible starting point for the conversation.

A Warranty That Transfers Is a Position, Not a Promise

When a facade warranty is transferable, non-prorated and supported by complete documentation, it moves from a background assumption to a verifiable asset in the transaction. Buyers reduce their risk adjustments when the envelope is covered. Sellers recover more of the value they built into the building.

Fairview designs its warranty structure to support that outcome. The goal is not to produce a document that satisfies a specification checkbox and then disappears into a project file. The goal is to produce coverage that remains legible, enforceable and transferable across the building’s ownership history, because that is what building with confidence actually requires.

If you are preparing a building for sale or refinancing and need to confirm the transfer status and remaining term of your Fairview warranty, contact the Fairview technical services team. Bring the original warranty certificate and the project address. The review is straightforward and the documentation can be assembled before your PCA engagement begins.

The post Transferable Facade Warranties and Building Resale Value first appeared on Fairview Architectural North America.

The Bend Is a Tensile Event, Not Just a Shape Change

When aluminum sheet is formed over a brake press, the outer skin of the bend stretches in tension while the inner skin compresses. The coating on the outer face has to elongate with the substrate or it fractures. There is no mechanical workaround for this; the coating either has the elongation capacity to follow the metal or it does not.

The ratio of inside bend radius to sheet thickness, the R/t ratio, quantifies how much elongation the coating must absorb. A tighter radius relative to sheet thickness means a higher elongation demand. At an R/t of 1.0, the coating on the outer face of a 0.125-inch sheet is being asked to stretch significantly more than at an R/t of 4.0 on the same material.

Failures at the fold line present in three distinct ways. Crazing is a network of fine surface cracks that appears immediately or within days of forming. Micro-cracking runs deeper into the film and may not be visible without magnification until weathering opens the fractures. Delamination separates the coating from the substrate entirely, often starting at the apex of the bend and propagating outward. All three look similar from a distance on the wall, but they have different root causes and different implications for repair or replacement.

One documentation gap worth understanding: AAMA 2605 requires minimum elongation performance under direct impact testing, but that test geometry does not replicate the sustained tensile stress of a tight-radius brake-press bend. Passing AAMA 2605 is necessary for long-term exterior durability; it is not a certification that the coating will survive a specific R/t condition. Treating those two things as equivalent is where specification errors begin.

The Resin System Determines How Far the Coating Can Stretch Before It Breaks

Fluoropolymer coatings are the benchmark for architectural exterior performance, delivering high UV resistance, color retention and chemical resistance over decades of exposure. That performance comes from a resin chemistry that is inherently stiffer than modified polyester or polyurethane systems. The stiffness is a trade-off built into the material, not a manufacturing defect, and it matters when the design includes tight geometry.

Elongation-to-break values across common architectural coating resin systems vary considerably, with standard PVDF formulations typically on the lower end and flexible polyester blends on the higher end. The specific formulation, the film build and the primer system all shift that number in practice. A thicker decorative topcoat applied over a thin or poorly bonded primer can delaminate at the bend even when the topcoat elongation value looks adequate on paper, because the system is only as strong as its weakest interface.

An important distinction: a Kynar 500 designation is a resin specification, not a bend-performance specification. Two coatings can both carry that designation and have meaningfully different elongation characteristics depending on how the applicator has formulated the system, including pigment loading, plasticizer levels and total dry film thickness. The spec sheet designation tells you the resin family; it does not tell you whether the coating will survive your specific R/t condition.

The Math That Tells You Whether the Coating Is in Trouble

Before a job runs, calculate the R/t ratio for every unique bend condition on the project. Divide the inside bend radius by the sheet thickness. Flag any result below 2.0 as a high-risk condition for standard PVDF coatings and treat it as a trigger for additional verification, not an assumption that the coating will perform.

The substrate construction matters in this calculation. Aluminum composite material panels have a thermoplastic core that absorbs a portion of the bend stress, reducing the elongation demand on the skin coating relative to solid plate of equivalent nominal thickness. The two substrates are not interchangeable in this analysis. Running the same R/t threshold across both without accounting for the core layer will either over-restrict composite panels or under-restrict solid plate.

Three-dimensional panel geometry compounds the risk further. Returns that fold twice, mitered corners and panels with intersecting fold lines stress the coating in two axes simultaneously at the intersection point. The elongation demand at those locations is higher than a single-axis calculation suggests, and those are the locations where field failures tend to concentrate.

Vitraplate solid aluminum sheet and Vitrabond FR aluminum composite panels have different substrate constructions that produce different R/t performance envelopes. Selecting the correct product for the bend geometry on a given project is a pre-fabrication decision. It cannot be corrected in the field after the panels are formed.

AAMA 2605 Compliance Does Not Mean the Coating Will Survive Your Bend

AAMA 2605 is the correct specification for long-term exterior durability, color retention and chalk resistance. It was written to certify weathering performance over time, not to certify bend performance at specific R/t ratios. Using AAMA 2605 compliance as a proxy for bend-performance assurance creates a documentation gap that becomes a contract problem when panels fail inspection.

The submittal package typically includes a coating manufacturer’s technical data sheet with elongation values. Those values are measured under laboratory conditions using a standard tensile specimen, not a brake-press bend on a coated panel in production conditions. The correlation between the lab value and the field result requires interpretation, and that interpretation should happen before the job runs, not after.

When the design calls for tight radii, the right question at submittal is not whether the coating is AAMA 2605 compliant. The right question is: what is the minimum inside bend radius the applicator has validated for this specific coating system on this substrate at this film build? That is a specific, answerable question, and if the answer is not in the submittal package, it belongs in an RFI.

Some coating applicators publish bend radius tables or pre-qualification test data for specific product and substrate combinations. Requesting that documentation before committing to a fabrication price is standard professional practice. A supplier who cannot provide it is signaling something worth noting.

Flexible Resin Systems and Pre-Qualified Substrates Exist for a Reason

Modified polyester and polyurethane topcoat systems are formulated with higher elongation-to-break values to serve fabricators working with complex geometry. They sacrifice some long-term UV performance relative to standard PVDF, but for tight-radius applications they are the correct tool. Specifying a high-durability PVDF system on a panel that requires an R/t of 1.0 is not conservative; it is a mismatch between material capability and application demand.

Some fluoropolymer coating lines include a flex-grade formulation that maintains the base resin content while adjusting plasticizer levels to raise elongation. These products occupy a middle position between standard PVDF and full polyester systems and are worth evaluating when the design requires both complex geometry and long-term weathering performance.

Pre-painted coil stock processed through a coil-coating line applies coating before forming, which can improve adhesion consistency across the panel surface. The same elongation limits apply to coil-coated material, however. The coating process does not change the resin chemistry, and coil-coated material is not automatically bend-safe at tight radii because the application method is different.

Fairview’s Vitranar architectural finish line is formulated and tested for applications where complex forming is part of the design intent. Confirming the specific product’s validated bend radius with the Fairview technical team before fabrication is the correct workflow, not a step to defer until the submittal is already closed.

A Short Technical RFI Now Prevents a Costly Field Rejection Later

The documentation path is straightforward. Draft a single-question RFI to the coating applicator or material supplier asking for the minimum validated inside bend radius for the specified coating system on the specified substrate thickness. That is one line. It takes less time to write than a field repair takes to schedule.

If the answer is not available, or if the validated radius is larger than the design requires, document the gap in writing and route it to the architect of record before fabrication begins. That step protects your contract position and creates a clear record of where the design responsibility sits.

Request a sample bend test on a coated coupon at the actual R/t ratio before the full production run. Most reputable suppliers will accommodate this request. The result is objective evidence that either clears the specification or triggers a substitution while there is still time to make one without a cost impact.

The Right Coating for the Bend Is a Specification Decision, Not a Field Fix

Coating failures at the fold line are predictable and preventable when the elongation limits of the specified resin system are matched to the actual R/t conditions of the job. The material science is not complicated once it is framed in fabrication terms, and the documentation path is straightforward. The gap is almost always at the specification stage, where the bend geometry and the coating chemistry were never evaluated together.

Fairview’s technical team can provide bend-performance guidance specific to Vitrabond FR, Vitraplate and Vitranar products and can coordinate with the coating applicator to confirm validated parameters before fabrication begins. That conversation is part of the pre-fabrication service. If you are quoting a job with tight returns or complex panel geometry, reach out before the submittal closes. The conversation is free; the field repair is not.

The post Tight-Radius Bends in Aluminum: Why Coatings Crack first appeared on Fairview Architectural North America.

The Coastal Threat Profile: Why Standard Finish Logic Breaks Down at the Waterfront

The coastal environment attacks aluminum finishes through four overlapping mechanisms, and understanding each one changes how you read a finish submittal.

First, salt chloride deposition accelerates oxidation at coating interfaces. Cut edges, fastener penetrations and panel joints are the most vulnerable points, where the coating system is thinnest or interrupted entirely. Second, UV index at coastal latitudes is compounded by reflective glare off water surfaces, which accelerates chalking and color shift in finishes that do not meet the highest weathering thresholds. A finish that performs adequately in an inland urban context can visibly degrade within a few years at the waterfront. Third, thermal cycling between marine air and sun-exposed metal substrates creates micro-expansion stress that tests adhesion at the coating-to-substrate bond continuously over the life of the building. Fourth, humidity cycling promotes filiform corrosion beneath coatings that lack adequate barrier chemistry or conversion coating preparation, producing the characteristic worm-track pattern that signals coating failure well before the surface shows obvious damage.

AAMA 2605 defines the performance threshold for high-performance organic coatings, requiring no more than a 5 percent chalk rating and a delta E color change of no more than 5 units after 10 years of Florida exposure testing. That Florida exposure protocol is not arbitrary; it is the closest standardized proxy for sustained UV and humidity stress that coastal projects face. For any exterior aluminum finish on a marine-adjacent project, AAMA 2605 compliance is the minimum credible benchmark, not a premium option.

Coil Coating Fundamentals: Controlled Factory Application as a Performance Advantage

Coil coating applies liquid organic coating to a continuous aluminum coil in a factory-controlled environment, producing uniform film thickness, cure temperature and adhesion across every panel before fabrication begins. That process consistency is the core performance advantage, because the variables that cause field-applied coatings to fail, inconsistent film build, inadequate cure and surface contamination, are eliminated before a single panel is cut.

The substrate receives a chemical conversion coating, typically a chromate or non-chromate pretreatment, before primer and topcoat application. This creates a multi-layer barrier system where each layer serves a distinct function: the conversion coating promotes adhesion and corrosion resistance at the metal surface, the primer provides additional barrier protection and the topcoat delivers weathering performance and color stability.

PVDF resin systems based on Kynar 500 are the industry-recognized chemistry for high-performance coil coated finishes. Kynar 500 is a registered trademark of Arkema and is the fluoropolymer resin standard referenced in AAMA 2605 compliance documentation. Compared to polyester or silicone-modified polyester alternatives, PVDF delivers superior UV resistance, chalk resistance and color retention over a multi-decade service horizon. When reviewing finish submittals, confirm that documentation references Kynar 500 or Hylar 5000 resin content specifically. A generic PVDF or fluoropolymer designation does not confirm the resin chemistry that AAMA 2605 performance data is built on.

Factory application also eliminates field touch-up variability as the primary quality control risk, a meaningful advantage on coastal projects where coating integrity at every square inch of exposed surface is non-negotiable.

Anodizing: An Integral Finish With Specific Coastal Limitations

Anodizing is an electrochemical process that converts the aluminum surface into aluminum oxide, creating a finish that is integral to the metal rather than applied over it. Because the finish is part of the substrate, delamination is not a failure mode, which is a genuine performance advantage in certain contexts.

Anodize class and thickness are defined by AAMA 611. Architectural Class I, with a minimum anodic coating thickness of 0.7 mils, and Class II, with a minimum of 0.4 mils, represent the two primary specification tiers. Class I is the appropriate minimum for exterior coastal applications; Class II does not provide sufficient oxide thickness for sustained marine exposure.

Anodized aluminum performs well in moderate environments and delivers a distinctive metallic aesthetic that coil coating cannot replicate. Where that visual character is the design intent, anodize is a legitimate specification choice and should be evaluated on its merits.

The limitation in coastal environments is that anodize is not a sealed barrier coating in the way that a PVDF topcoat is. The anodic oxide layer is porous by nature, and chloride ions can penetrate that structure and initiate pitting corrosion at the aluminum substrate, particularly in unsealed or inadequately sealed anodize. AAMA 611 Class I requires a sealing quality test to confirm pore closure, and the sealing process matters significantly. On coastal projects, require sealing test documentation in the submittal and confirm that the anodizer’s process includes a hot deionized water or nickel acetate seal. An anodized finish without documented seal quality is a specification gap that coastal conditions will find.

Coil Coated vs Anodized: A Specification-Level Comparison for Marine Exposure

Comparing the two finish systems across the performance dimensions that matter most for coastal facades produces a clear picture of where each approach is appropriate.

On color and gloss retention, PVDF coil coating meeting AAMA 2605 outperforms anodize in UV-driven color shift over a 10-year horizon. Anodize does not chalk, but it can experience surface etching and loss of specular reflectance in high-chloride zones, which changes the visual character of the facade in ways that are difficult to remediate without panel replacement.

On corrosion resistance, coil coating with proper pretreatment provides a continuous barrier that resists filiform and crevice corrosion. Anodize relies on oxide integrity and seal quality, both of which can degrade under sustained salt spray exposure. AAMA 2605 requires 4,000 hours of salt spray resistance per ASTM B117 with no more than 1/16 inch of corrosion creep from scribe. That test protocol is a direct proxy for coastal exposure performance and should be a required element of your finish submittal documentation.

On damage response, coil coating can be field-touched up with compatible liquid coating, though color match is imperfect. Anodize cannot be field-repaired to original appearance; significant damage requires panel replacement. On a coastal facade where physical damage from wind-driven debris is a realistic scenario, that distinction has long-term cost implications.

On maintenance cycle, AAMA 2605 coil coated panels on coastal facades typically require periodic washing and inspection to remove chloride accumulation and assess coating condition. Anodized panels in marine zones may require more frequent inspection for pitting and surface degradation, with earlier intervention thresholds before damage becomes irreversible.

The Finish Is Only as Good as the Substrate: ACM vs Solid Plate Considerations

Finish performance does not exist independently of the substrate system it is applied to, and coastal projects often have additional constraints that make substrate selection as consequential as finish selection.

Aluminum composite material panels such as Vitrabond FR combine a PVDF coil coated aluminum skin with a fire-rated mineral core, delivering the finish performance of PVDF coating on a panel system engineered for rainscreen and ventilated facade applications. The mineral core in Vitrabond FR is the element that enables fire code compliance in assemblies where combustible components require NFPA 285 testing. NFPA 285 is a full-scale fire propagation test for exterior wall assemblies; Vitrabond FR carries NFPA 285 compliance as part of documented wall assembly configurations, which is a required submittal item for projects governed by IBC Chapter 14 and high-rise provisions. Specifiers should request NFPA 285 test reports for the specific panel and wall assembly configuration, not a material-level fire rating alone.

Vitraplate offers greater thickness and rigidity for applications requiring heavier gauge material, with the same PVDF coil coated finish system applied at the coil stage before fabrication. For coastal projects where panel depth, shadow reveals or structural loading drives a solid plate specification, the finish performance characteristics are consistent with those of the ACM skin.

One practical constraint worth noting: anodized finishes are available on solid aluminum substrates but are not applicable to ACM panels. If the design intent requires an anodized aesthetic, the substrate must be solid plate or an extrusion profile, which affects the full panel system specification including attachment, joint detailing and fire compliance pathway.

Writing the Finish Specification to Protect the Project

Specification language is where performance intent either gets protected or quietly diluted. On coastal projects, the finish specification deserves the same rigor as the structural or waterproofing sections.

Reference AAMA 2605 by name for all exterior aluminum panels on coastal and marine-adjacent projects. Do not accept AAMA 2603 or AAMA 2604 as substitutions without documented justification; those standards represent meaningfully lower performance thresholds that the coastal environment will expose over time. Require Kynar 500 or Hylar 5000 resin content confirmation in the finish submittal, not a generic PVDF or fluoropolymer designation. For anodized finishes, specify AAMA 611 Class I as the minimum, require sealing test results and request the anodizer’s documented process for salt spray exposure environments.

AAMA 2605 also requires that the coating applicator be a licensed applicator of the resin manufacturer. Confirming that the panel manufacturer holds that licensed applicator status is a straightforward submittal verification that closes a common specification gap.

Finally, include a maintenance and inspection protocol requirement in the specification. Define washing frequency, inspection intervals and the threshold for coating assessment. Coastal facades without a documented maintenance plan create long-term liability for the design team and the owner; a specification that addresses maintenance from the outset sets the project up for the thirty-year performance the owner expects.

If you are working through finish selection for a coastal project and want to review AAMA 2605 submittal documentation, NFPA 285 assembly test reports or physical finish samples for Vitrabond FR or Vitraplate, the Fairview technical team is available for a specification consultation or detail review at fairview-na.com.

The post Coil Coated vs Anodized Aluminum: Coastal Facade Finishes first appeared on Fairview Architectural North America.
